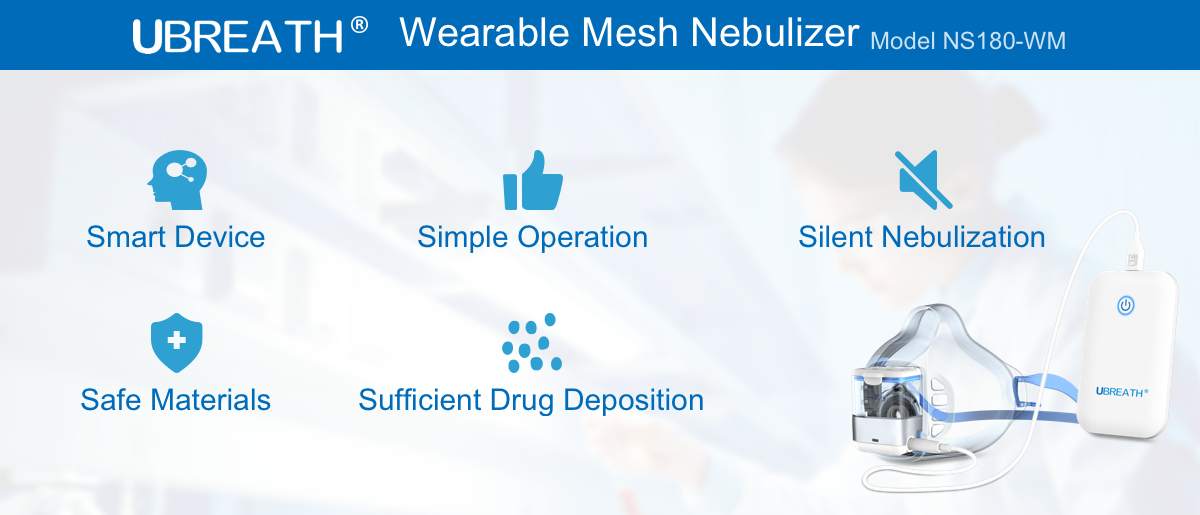

UBREATH ® Wearable Mesh Nebulizer (NS180,NS280)
UBREATH® Wearable Mesh Nebulizer (NS180-WM) is a world's first wearable mesh nebulizer used to administer medication in the form of a mist inhaled into the lung. It works for both children and adults under treatment of asthma, COPD, cystic fibrosis and other respiratory diseases and disorders.The product treating the upper and lower respiratory tract by atomizing liquid and sprays it into user’s airway in order to keep the respiratory tract unobstructed, moisten respiratory tract and dilute sputum.
+ Small device - free your hands while receiving nebulization treatment
+ Sufficient drug deposition - MMAD < 3.8 p.m
+ Silent operation - noise < 30 dB during operating
+ Smart operation - adjustable nebulization rate available from 0.1 mL/min, 0.15 mL/min and 0.2mL/min
Technical Specifications
|
Feature |
Specification |
|
Model |
NS 180-WM |
|
Particle Size |
MMAD < 3.8 μm |
|
Noise |
< 30 dB |
|
Weight |
120 grams |
|
Dimension |
90mm × 55mm × 12mm (Remote controller) |
|
30mm × 33mm × 39mm (Medicine container) |
|
|
Medicine container capacity |
Max 6 mL |
|
Power supply |
3.7 V Lithium rechargeable battery |
|
Power consumption |
< 2.0 W |
|
Nebulization rate |
3 levels: 0.10 mL/min; 0.15 mL/min; 0.20 mL/min |
|
Vibrating Frequency |
135 KHz ± 10 % |
|
Operating temperature and humidity |
10 ‐ 40 ºC, RH: ≤ 80% |
